Accessibility Lifts

ND100

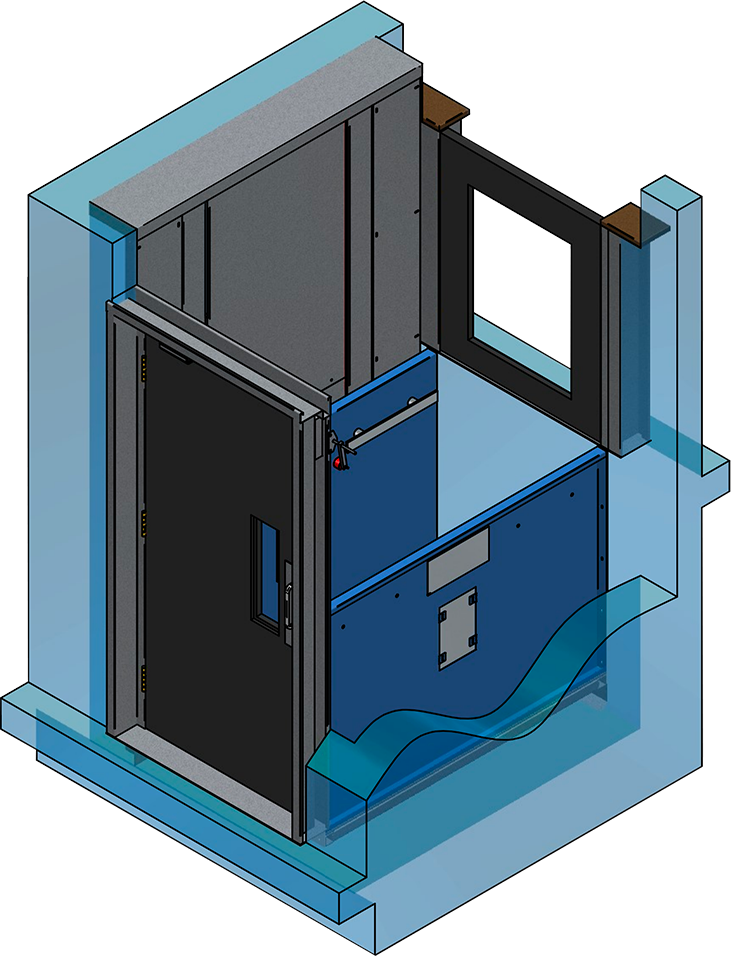

The ND100 series elevators are very compact, hence perfect for short travels of maximum one floor. They permanently solve access issues in small size buildings. As the cabin is not full due to small-distance rides, the entrance is built to reinforce the opposite wall rigidity.

The ND100 series is ideal as an addition to an existing construction. The cabin dimensions and finish and the shaft size vary according to your specific needs.

The ND100 Model Detailed

FUNCTIONAL SPECIFICATIONS

STANDARD FEATURES

OPENING DISPLAY

CABIN FEATURES

LANDING ENTRANCES FEATURES

OPTIONS

All our elevator models have standard features. If these standard features don’t meet your needs, don’t hesitate to communicate with us. We will guide you to the best option for your projects.

  • Capacity
    1,000–1,400 lb
  • Hydraulic Drive
    Direct or cable
  • Maximum Travel
    7 m
  • Pit Depth
    Min. 8–12 in
  • Breaking System
    Noddem—containment system
  • Pump Unit
    Noddem—submersible
  • Controller
    Relay or automate
  • Emergency Lowering
    Battery
  • Position Indicator
    N.A.
  • Cabin Height
    42 in
  • Speed
    30 fpm
  • Overhead
    42–96 in
  • Motor
    3 or 5 HP
  • Valve
    KVIP
  • Building Voltage
    Min. 240 V
  • Operation
    Constant Pressure
  • Leveling Device
    Two-way
  • Phone Cabinet
    Yes (optional phone)
The ND100 Model Detailed

FUNCTIONAL SPECIFICATIONS

STANDARD FEATURES

OPENING DISPLAY

CABIN FEATURES

LANDING ENTRANCES FEATURES

OPTIONS

You can select how many doors you need and where to install them in the elevator according to your building specifications.

1 DOOR — Front

1 DOOR — Side

2 DOORS — Front & Rear

2 DOORS — Front & Side

3 DOORS — Front, Rear & Side

The ND100 Model Detailed

FUNCTIONAL SPECIFICATIONS

STANDARD FEATURES

OPENING DISPLAY

CABIN FEATURES

LANDING ENTRANCES FEATURES

OPTIONS

The cabin appearance is customizable and modular to make sure you get the best option for your project.

  • Full construction
  • Stainless steel full construction
  • Eco-type
  • Stainless steel handrails
  • Plywood flooring
  • Stainless steel operating panel
The ND100 Model Detailed

FUNCTIONAL SPECIFICATIONS

STANDARD FEATURES

OPENING DISPLAY

CABIN FEATURES

LANDING ENTRANCES FEATURES

OPTIONS

The landing entrances can be customized according to your needs and preferences.

  • Swing doors
  • Steel hinges doors
The ND100 Model Detailed

FUNCTIONAL SPECIFICATIONS

STANDARD FEATURES

OPENING DISPLAY

CABIN FEATURES

LANDING ENTRANCES FEATURES

OPTIONS

Many modification options are possible to meet the building and occupants’ requirements. Don’t hesitate to contact us for the best customized options for your project.

The ND100 Model Detailed

FUNCTIONAL SPECIFICATIONS

STANDARD FEATURES

All our elevator models have standard features. If these standard features don’t meet your needs, don’t hesitate to communicate with us. We will guide you to the best option for your projects.

  • Capacity
    1,000–1,400 lb
  • Hydraulic Drive
    Direct or cable
  • Maximum Travel
    7 m
  • Pit Depth
    Min. 8–12 in
  • Breaking System
    Noddem—containment system
  • Pump Unit
    Noddem—submersible
  • Controller
    Relay or automate
  • Emergency Lowering
    Battery
  • Position Indicator
    N.A.
  • Cabin Height
    42 in
  • Speed
    30 fpm
  • Overhead
    42–96 in
  • Motor
    3 or 5 HP
  • Valve
    KVIP
  • Building Voltage
    Min. 240 V
  • Operation
    Constant Pressure
  • Leveling Device
    Two-way
  • Phone Cabinet
    Yes (optional phone)

OPENING DISPLAY

You can select how many doors you need and where to install them in the elevator according to your building specifications.

1 DOOR — Front

1 DOOR — Side

2 DOORS — Front & Rear

2 DOORS — Front & Side

3 DOORS — Front, Rear & Side

CABIN FEATURES

The cabin appearance is customizable and modular to make sure you get the best option for your project.

  • Full construction
  • Stainless steel full construction
  • Eco-type
  • Stainless steel handrails
  • Plywood flooring
  • Stainless steel operating panel

LANDING ENTRANCES FEATURES

The landing entrances can be customized according to your needs and preferences.

  • Swing doors
  • Steel hinges doors

OPTIONS

Many modification options are possible to meet the building and occupants’ requirements. Don’t hesitate to contact us for the best customized options for your project.

1
Technology

MID-HEIGHT DOOR

A mid-height door is a great solution for accessibility lifts travelling short distances. Designed to perfectly match the elevator design, the mid-height door makes going inside and outside the cabin easier for people with a mobility impairment.

2
Technology

INTEGRATED CALL BUTTONS

The doorframe-integrated call button panel is the perfect solution for a trim design. Easy to use, it matches any decor.

3
Technology

TOWER & MECHANIC COVER

Two original features, the tower and mechanic cover hide the mechanical systems without blocking the access for potential interventions, hence contributing to an impeccable cabin finish.

fleche gauche
fleche gauche

POSSIBLE APPLICATIONS

Commercial

The ND100 accessibility lifts are known for their high-quality accessibility perfectly suited for 2-storey buildings.

Commercial

Institutional

Residential

POSSIBLE APPLICATIONS

Institutional

For any professional building, such as libraries, schools, arenas, hospitals, elderly care centers, Noddem ensures durable equipment. All ND100 accessibility lifts can be adapted to every construction’s specific needs.

Commercial

Institutional

Residential

POSSIBLE APPLICATIONS

Residential

Residential elevators give complete accessibility throughout your home. Whatever your needs, all ND100 residential accessibility lifts provide high-end quality resulting in durable and easy-to-use installation. With the strict residential standards to meet, Noddem’s team makes sure to design equipment that is both safe and in compliance with all requirements in effect.

Commercial

Institutional

Residential

POSSIBLE APPLICATIONS

Commercial

The ND100 accessibility lifts are known for their high-quality accessibility perfectly suited for 2-storey buildings.

Institutional

For any professional building, such as libraries, schools, arenas, hospitals, elderly care centers, Noddem ensures durable equipment. All ND100 accessibility lifts can be adapted to every construction’s specific needs.

Residential

Residential elevators give complete accessibility throughout your home. Whatever your needs, all ND100 residential accessibility lifts provide high-end quality resulting in durable and easy-to-use installation. With the strict residential standards to meet, Noddem’s team makes sure to design equipment that is both safe and in compliance with all requirements in effect.

COMPARE THE MODELS

SPECIFICATIONS FOCUS—ND500 ND100 GALAXY—LU/LA
Capacity 1,000–1,400 lb 1,000–1,400 lb 1,400 lb
Hydraulic Drive Direct or cable Direct or cable Direct or cable
Maximum Travel 7 m 7 m 7.6 m
Pit Depth Min. 8–12 in Min. 8–12 in Min. 15 in
Breaking System Noddem—containment system Noddem—containment system Noddem—containment system
Pump Unit Noddem—submersible Noddem—submersible Noddem—submersible
Controller Relay or automate Relay or automate Relay or automate
Emergency Lowering Battery Battery Battery
Position Indicator Optional N.A. Standard on main floor
Cabin Height 80 in standard 42 in 84 in standard
Speed 30 fpm 30 fpm 30 fpm
Overhead 96 in 42–96 in 117–123 in
Motor 3 or 5 HP 3 or 5 HP 5 HP
Valve KVIP KVIP EV100
Building Voltage Min. 240 V Min. 240 V Min. 240 V
Operation Constant Pressure Constant Pressure Simple collective
Leveling Device Two-way Two-way One or two-way
Phone Cabinet Yes (optional phone) Yes (optional phone) Standard hands-free device
